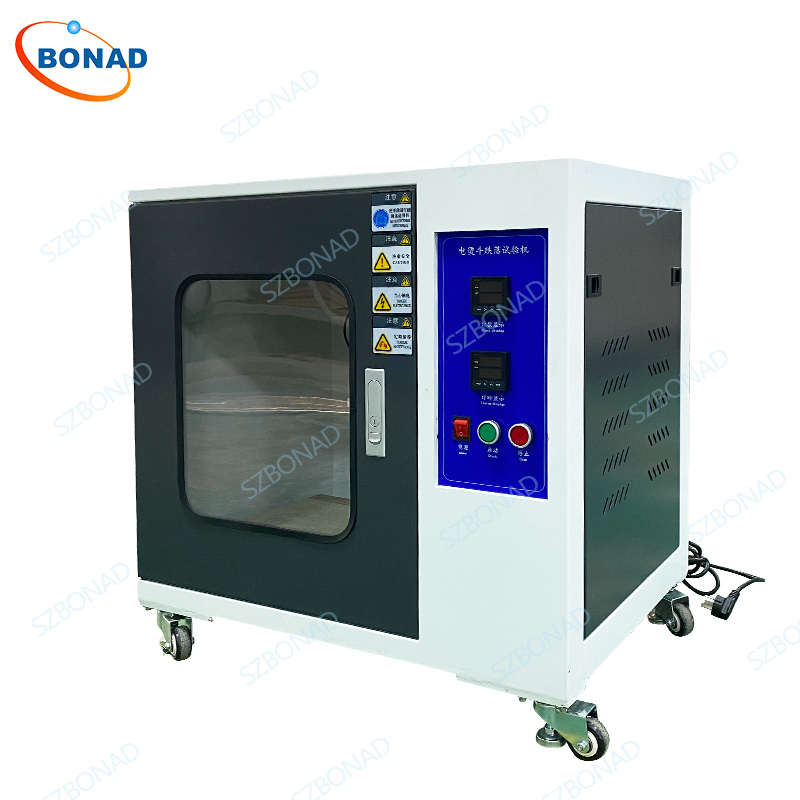

IEC 60335-2-3 Clause 21.101 Electric lron Drop Test Apparatus
Name:IEC 60335-2-3 Clause 21.101 Electric lron Drop Test Apparatus
Type:BND-EA001
Manufacturer:IEC 60335-2-3 Electric Irons Mechanical Strength 40mm 1000 Times Drop Test Apparatus,It is used to check the mechanical strength of the electric iron under normal working conditions and rated power input, and also to test the drop resistance of the electric blanket control device.
Product Description:

IEC 60335-2-3 Clause 21.101 Electric Iron Drop Test Apparatus

Model:BND-EA001

Product Introduction

Welcome to our detailed overview of the IEC60335-2-3 Clause 21.101 Electric Iron Drop Test Apparatus, Model: BND-EA001. This state-of-the-art equipment is designed to test the mechanical strength and drop resistance of electric irons and electric blanket control devices under normal working conditions and rated input power.

Equipment Use

The electic iron drop tester is specifically engineered to assess the durability and resilience of electric irons and electric blanket control devices. It simulates real-world scenarios by subjecting these appliances to rigorous drop tests, ensuring they can withstand everyday use without compromising safety or functionality.

Test Principle

Our apparatus employs a motor-driven cam mechanism to suspend the electric iron by its handle, aligning it horizontally with the bottom plate. The iron is then dropped from a height of 40mm onto a rigid supporting steel plate with a minimum thickness of 15mm and a mass of at least 15kg. This process is repeated 1000 times at a frequency not exceeding 20 drops per minute. Each drop ensures that the iron remains on the steel plate for 15% of the cycle time, providing a comprehensive assessment of its durability.

Compliance with Standards

  • IEC60335-2-3:2005 - Household and similar electrical appliances-Safety-Part2-3: Particular requirements for electric irons (Clause 21.101)
  • IEC60335-2-17:2006 - Household and similar electrical appliances-Safety-Part2-17: Particular requirements for blankets, pads, and similar flexible heating appliances (Clause 21.101)

Technical Parameters:

Parameter

Description

Equipment Structure

Box structure

Equipment Size

Approximately 600×550×1200 mm (W×H×D)

Equipment Weight

Approximately 80 kg

Workstation

Single workstation

Electrical Control Method

Button control

Drive Method

Motor drives cam mechanism for free fall action

Sample Clamping Method

Installed on the drop device through a rope

Test Rate

≤20 rpm

Number of Tests

Adjustable from 0 to 9999 times

Drop Height

40 mm, equipped with height positioning block

Support Steel Plate Thickness

>15 mm, mass >15 kg

Load Equipped with Universal Socket

Can supply mains electricity

Mainly for Samples

Electric iron, electric blanket control device





Frequently Asked Questions (FAQ)

1. What types of appliances can be tested with the electic iron drop tester?

The electic iron drop tester is designed primarily for testing electric irons and electric blanket control devices.

2. How many drop tests can be performed in one cycle?

The apparatus can perform up to 9999 drop tests in one cycle.

3. What is the maximum frequency of drops per minute?

The maximum frequency is set at no more than 20 drops per minute.

4. Is the apparatus compliant with international safety standards?

Yes, it complies with IEC60335-2-3:2005 and IEC60335-2-17:2006 standards.

5. What are the dimensions and weight of the equipment?

The equipment measures approximately 600×550×1200 mm (W×H×D) and weighs around 80kg.

For more information or inquiries about our product, please contact us through our website or customer service hotline.
